FUJI-308F

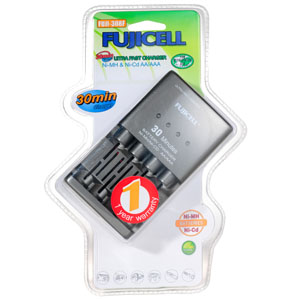

FUJI-308F 30min Super Fast Ni-MH/Ni-CD AA/AAA Charger

MAIN ADVANTAGES:

30MIN Super Fast Battery Charger With Cooling System

Individual Fast Charger
Absolutely Safe& Smart
Car kit Function
100V-240V World Wide Voltage

MAIN FEATURES:

4 Individual Charging Channels
30min Super Quick Charger
6-Level Charge Protection
–Delta V/0 Delta V cut off
Over Temperature Protection(55℃)
Cooling System with fan
Timer Control Protection (55 Minutes)
Reverse Polarity Protection
Over Current and Short Circuit Protection
Defective and Non-rechargeable battery detection
Low Current Leakage Minimizes loss of capacity and maintains charging of battery by Controlling Current Leakage
Trickle Charge to Maintain Battery Charge
Worldwide Voltage 100V-240V
Battery Rescue Function
Pulse and Series Charging Technology for Fast and Efficient Charging
Powered by AC Outlet /12-14VDC Car Charger

SPECIFICATIOINS:

Export packing information :

PCS/Carton	42PCS
Carton Dimension	0.370.450.41M
Carton CBM	0.068CBM
N.W./Carton
G.W./Carton	21KGS

Technical Characteristics

Adaptor
- Input: AC adapter 10V-240VAC, 50/60 Hz, 36W, or 12-14V DC
- Output: 12.0 VDC, 2.5A
Charger
(Electronic SCH308F)
- Charging current: AA/R06: 4000mA; A AAA/R03: 1750mA

Ambient Temperature	0℃ to 40℃/ Best at 25±2℃
Storage temperature	-20℃ to 60℃/ Best at 25±5℃
Humidity	5% to 85%/ non condensing

Charging Times

Battery Type	Battery Capacity	Approximate Charging time
R03/AAA Ni-MH	900mAh	30minutes
R03/AAA Ni-MH	800mAh	25nutes
R06/AA Ni-MH	2500mAh	35nutes
R06/AA Ni-MH	2000mAh	30nutes
R06/AA Ni-MH	1800mAh	25nutes

*When the batteries are fully charged, the charger will automatically switch to a minimum maintenance charge if the batteries are not immediately removed from the unit.
*Charge time stated is for a full charge on fully discharged batteries.
