FUJI-102S

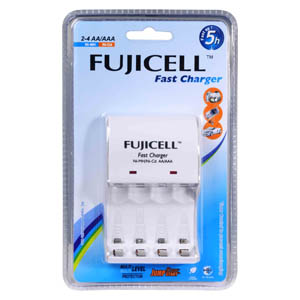

FUJI-102S Fast Ni-MH/Ni-CD AA/AAA Battery Charger
MAIN FEATURES
*Battery Type
Suitable for 2 or 4 AA/AAANi-MH/Ni-Cd batteries.
*Reverse Polarity Protection
The electrical circuit protects the chargerand batteries from being damaged by incorrectly installed batteries.
*0 Voltage Jump Start
Restore the battery if the battery voltage is 0V
* Low Battery Leakage Current
If the battery charger is not connected to input power and left in the charger, the charger will discharge the batteries using a pre-determined current.
SPECIFICATION
Export packing information
|
PCS/Carton
|
32PCS/CARTON
|
|
Carton Dimension
|
0.51*0.475*0.29 M
|
|
Carton CBM
|
0.07CBM
|
|
G.W./Carton
|
13KGS
|
Technical Characteristic
| Input voltage | 100-240VAC 60/50Hz 8W max |
| Charging voltage | Two (2) independent 2.8VDC channels, each channel charges two (2) batteries. Charges only in pairs. |
| Charging current | AA: 400mA ± 10℅ AAA: 200mA ±10℅ |
| Trickle Charge current | AA/AAA: 20mA ±10℅ |
| Charging Time Control. | for AA,/AAA : 6±1 hours |
| Input standby current | Maximum 10mA |
| Input loading current | Maximum 100mA |
| LED Indication | Red on: Normal charging Red off: Trickle charge in progress OR no battery in channels |
Environmental Conditions
|
Operating Temperature
|
0℃ to 40℃/ Best at 25±2℃
|
|
Storage temperature
|
-20℃ to 65℃/ Best at 25±5℃
|
|
Humidity
|
5% to 85%/ non condensing
|
Charging Times
|
Battery Type
|
Battery Capacity
|
Approximate Charging time
|
|
AA Ni-MH
|
2000mAh
|
6hrs
|
|
AA Ni-MH
|
1500mAh
|
4.5hrs
|
|
AAA Ni-MH
|
600mAh
|
3.6hrs
|
|
AA Ni-Cd
|
1000mAh
|
3hrs
|
|
AA Ni-Cd
|
850mAh
|
2.5hrs
|
|
AAA Ni-Cd
|
300mAh
|
1.8hrs
|
