SCH 908S

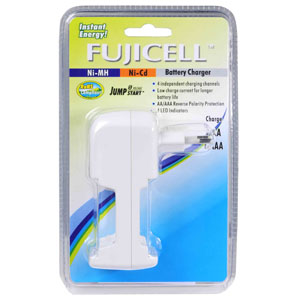

FUJI-908 Standard Ni-MH/Ni-CD AA/AAA Battery Charger
MAIN FEATURES
*Battery Type
Suitable for 1-4 AA/AAA Ni-MH/Ni-Cd batteries.
* Reverse Polarity Protection
The electrical circuit protects the chargerand batteries from being damaged by incorrectly installed batteries.
*0 Voltage Jump Start
Restore the battery if the battery voltage is 0V
*Low Battery Leakage Current
If the battery charger is not connected to input power and left in the charger, the charger will discharge the batteries using a pre-determined current.
SPECIFICATIONS :
Export Packing information
|
PCS/Carton
|
32PCS
|
|
Carton Dimension
|
0.465*0.44*0.29 M
|
|
Carton CBM
|
0.059 CBM
|
|
N.W./Carton
|
|
|
G.W./Carton
|
9KGS
|
Technical Characteristics
|
Input voltage
|
230VAC, 50Hz
|
|
Charging voltage
|
1.4VDC x 4 channels
|
|
Charging current
|
AA : 120 mA ±20mA
AAA:70 mA ±20mA
|
|
Input standby current
|
Maximum 25mA
|
|
Input loading current
|
Maximum 35mA
|
|
LED Indicators
|
Red LED on: Charging
|
Environmental Conditions
|
Operating Temperature
|
0℃ to 40℃/ Best at 25±2℃
|
|
Storage temperature
|
-20℃ to 65℃/ Best at 25±5℃
|
|
Humidity
|
5% to 85%/ non condensing
|
Charging Times
|
Battery Type
|
Battery Capacity
|
Approximate Charging time
|
|
AA Ni-MH
|
2000mAh
|
20hrs
|
|
AA Ni-MH
|
1500mAh
|
15hrs
|
|
AAA Ni-MH
|
600mAh
|
10hrs
|
|
AA Ni-Cd
|
1000mAh
|
10hrs
|
|
AA Ni-Cd
|
850mAh
|
8.5hrs
|
|
AAA Ni-Cd
|
300mAh
|
5hrs
|
